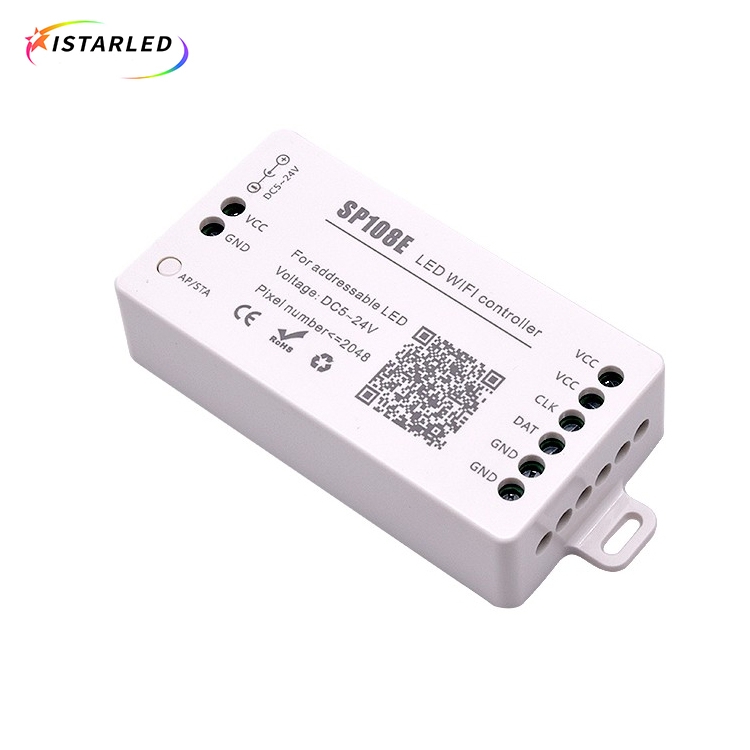

SP108E WIFI Pixel LED Controller

Part No: IL-SP108E

Features:

1.Long distance APP remote control via WIFI

2.Support routing mode(AP) and LAN connection mode(STA)

3.Support almost every kind of one-wire or two-wire LED driver IC

4.Brightness adjustable, With 180 kinds of patterns and 8 kind of color adjustable patterns

5.Creatively using from-image-to-effect method for user to DIY any effect

6.Support setting pixel number and segments number, able to control up to 2048 pixels

5.DC5V~24V wide range working voltage, preventing reverse connection of power supply

6.User setting saving

What's more

1.App control:

Both IOS version and Android OS version are available. (hardware should support WIFI)

?Requires IOS version 10.0 or later;

?Requires Android OS version 4.4 or later;

?Search”LedShop”in App Store or Google pay or scan this QR code to download and install the App:

2.Specifications:

Working temperature : -20℃~60℃

Working Voltage : DC5V~24V

Working Current : 20mA~130mA

Remote distance : 30 Meters

Product size : 85mm*45mm*22mm

Product weight : 40g

Certificates : CE, RoHS

3.Wire connection:
