H802RA LED Slave 4 ouputs controller

Part No:IL-H802RA

Features:

1.This slave led controller have 4 output ports, each port with 512 channels, total 4096 pixels max.

2.The slave controller support ArtNet protocol,4 universes with each 512 channels output when H802RA works with Madrix.

3.Write dmx address for DMX512 chips such as,UCS512,TM512.

4.This slave controller controlled by Master controller H803TV or PC.

5.The transmission distance of this two slave controllers is up to 100 meters.

6.Controller size:L163XW155XH54mm, Pack size: L205XW47XH21mm

Support chips:

DMX512, HDMX, LPD6803, LPD8806, LPD1882, LPD1889, LPD1883, LPD1886, TM1812, TM1809, TM1804, TM1803, TM512, TM1926, TM1913, TM1914, TM1814, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, UCS512, UCS8904, APA102, APA104, P9813, WS2801, WS2803, WS2811, WS2812, WS2821, SM16716, SM16711, INK1003, LX1003, MY9221, MBI6021, MBI6024, LD1510, LD1512, LD1530, LD1532,etc

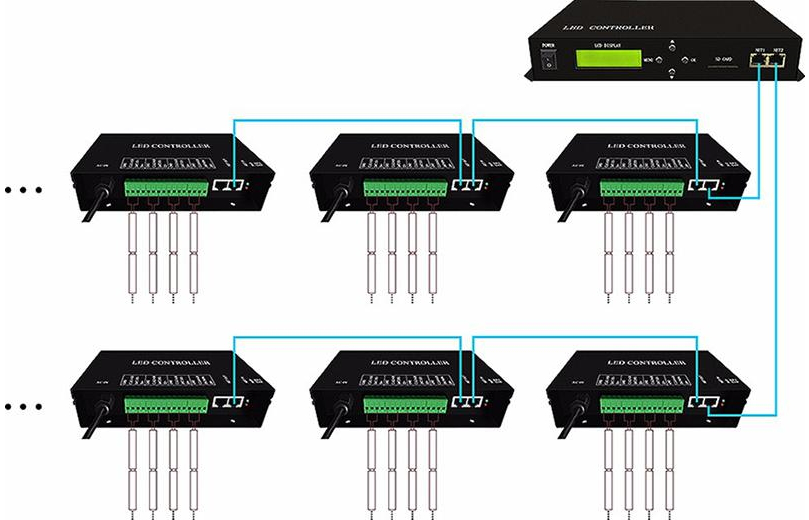

Connection diagram:
