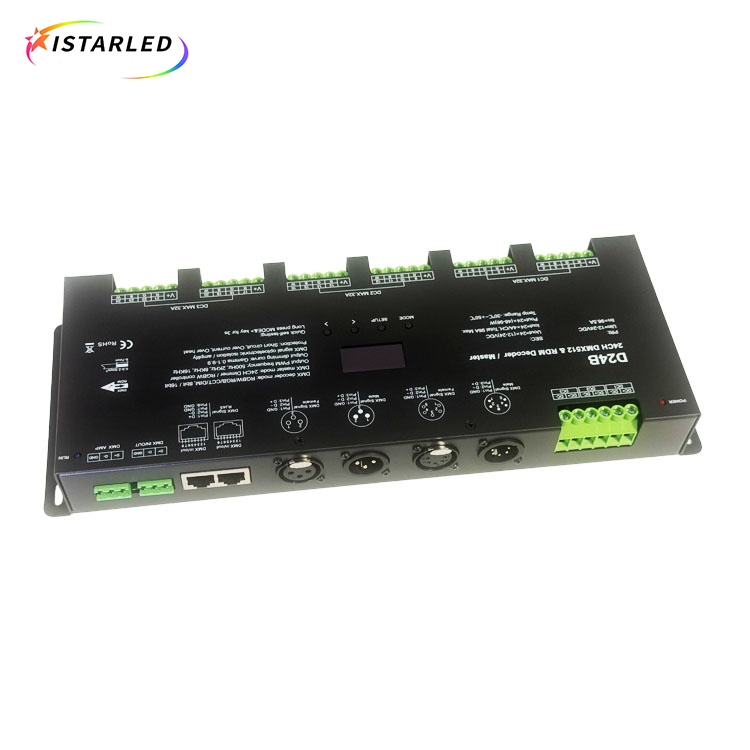

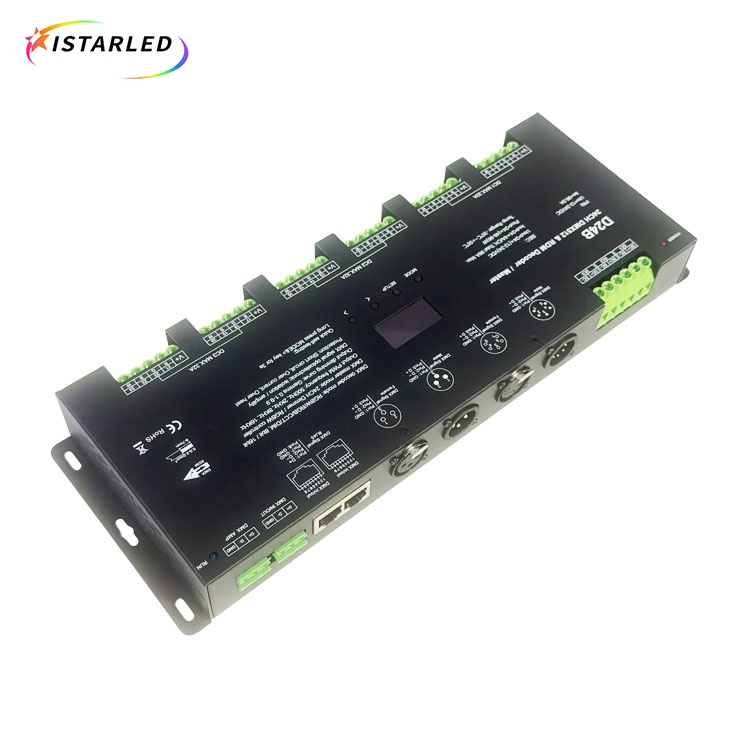

24 Channel Constant Voltage DMX512 & RDM Decoder / Master

PN:IL-D24B

Features:

1.24 channels constant voltage output, Max. 4A current per channel, up to 2304W output power.

2. Master & decoder mode, RDM function.

3. Easy operation with OLED display and 4 buttons.

4. DIM/CCT/RGB/RGBW decoding mode selectable.

5. PWM frequency 500/2000/8000/16000Hz selectable.

6.16bit(65536 levels)/8bit(256 levels) grey level selectable.

7.Output dimming curve gamma value 0.1-9.9 selectable.

8. Stand-alone RGBW mode and 24 channel dimmer mode selectable,  work as DMX master(8 bit) to control other decoders.

9.Built-in 10 RGBW programs, speed and brightness adjustable.

10.Comply with the DMX512 standard protocols.

11.DMX signal optoelectronic isolation / amplify.

12.Over-heat / Over-load / Short circuit protection, recover automatically.

13.With fast self-testing function.
