XB-C100 DMX RGB/RGBW Address Writer

PN:XB-C100

Product Description

一、Product features

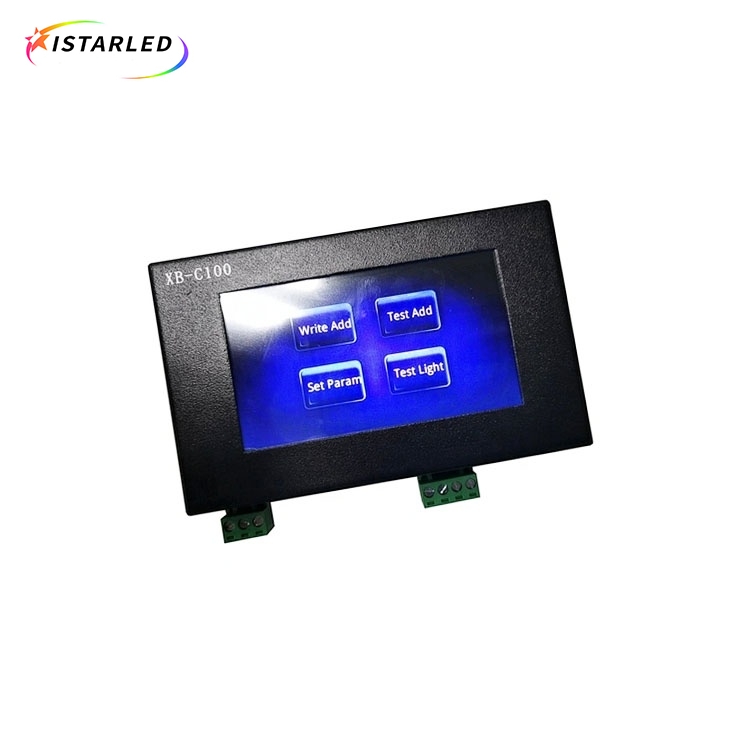

1. XB-C100 code editor: Large display panel, convenient touch screen operation and rich display.

2. Support operating system upgrades.

3. Adopt a built-in battery, supporting continuous work for 10 hours.

4. Support mainstream DMX512 chip, and can write code and parameters to DMX512IC.

5. Perform channel address testing and effect testing for DMX512IC lamps.

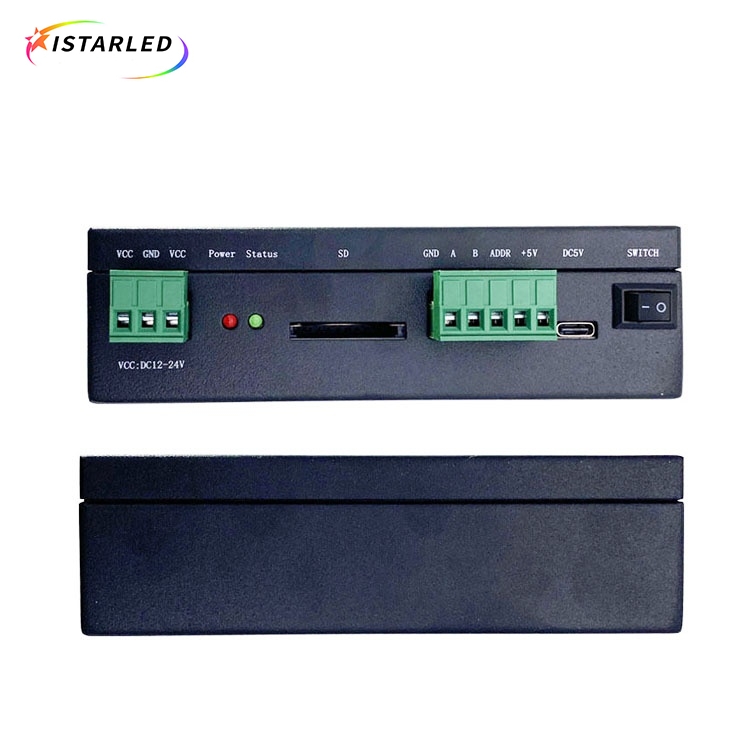

6. Its port can output enhanced TTL and 485 differential (DMX) signals, which can load TTL/DMX512 lamps.

7. Support a maximum of 512/2048 pixels (DMX lamps with a maximum of 512 pixels take three channels as an example).

8. XB-C100 22 has built-in test effects (three-channel / four-channel built-in effects optional).

9. Support dynamic and static dimming.

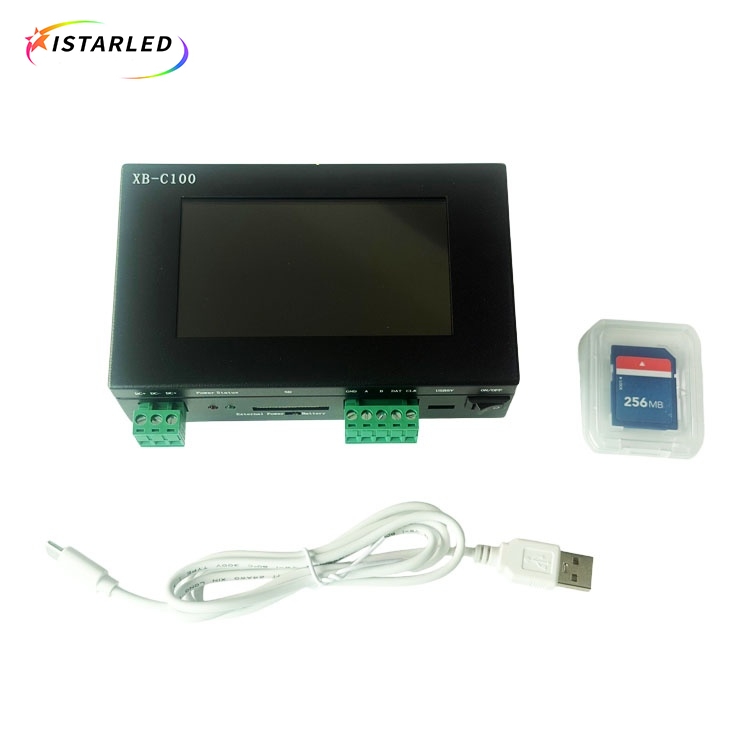

10. Support inserting an SD card to play (select K-1000 for software effect output), using the same as the K-1000C controller.
