Side view SK6805 RGBW smd4818 addressable led strip

Applications:


1.Home decoration

2.Advertisement sign lighting

3.Architectural decorative lighting

4.Holidays, events, show exhibitions

5.Background lighting, channel letter lighting

6.Hotels, clubs, shopping malls,swimming pool

7.Curve,tunnels,Christmas trees,towls,ceiling,landscape decorations


info@istar-led.com

Specification

Side view SK6805 RGBW smd4818 addressable led strip


Part No:IL-S100144SK6812SIDERGBW

Features:

1.dc5v 46.08W/m

2.SK6805 IC Chip built-in SMD4818 RGB

3.144led sk6805 4818 rgb per meter

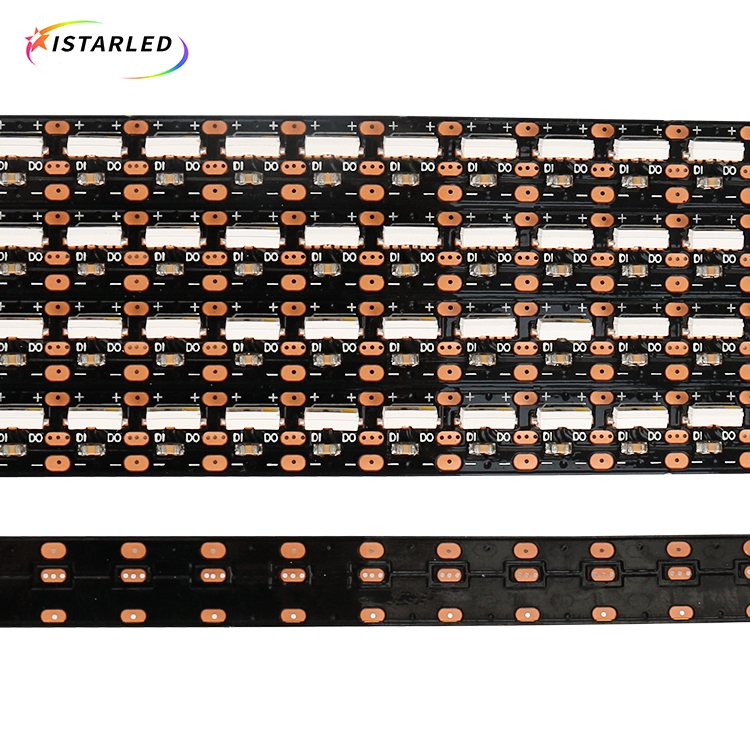

4.white and black pcb

5.8mm pcb width,pitch distance is 16.67mm

6.normal is 2 oz copper,also can do customer 3oz or 4oz copper pcb


What's more


After smd4020 rgb side view leds, what is better than them now ? It is sk6805 4818 side emitting LED! Sk6805 4818 side emitting achieve addressable with light emitting at 90 degrees.They're also very skinny so you can run them along a thin edge and curve them around shapes and corners. These look awesome for accent lighting, back lighting, edge lighting...

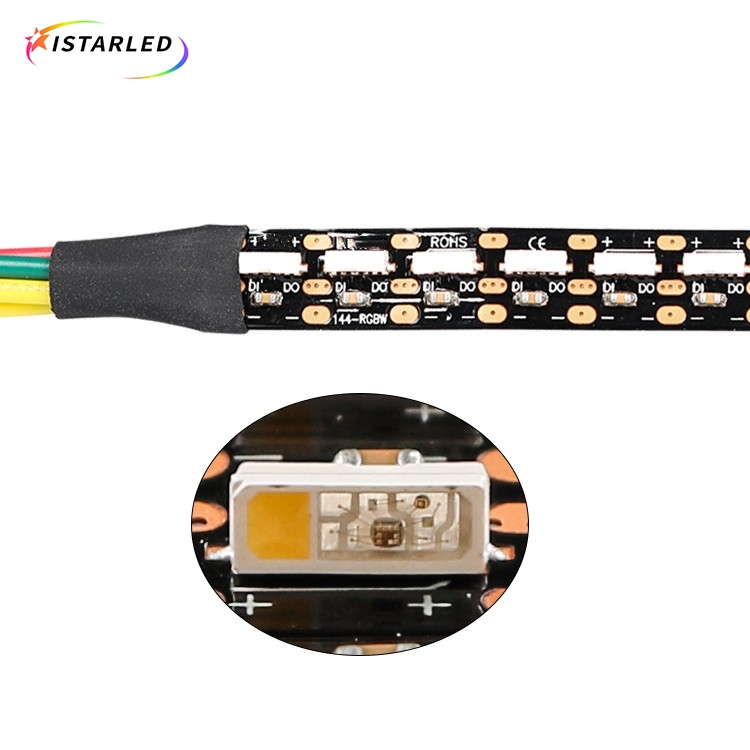

The sk6805 smd4818 side view rgbw pixel led strip is only 3 solder pads on the PCB,that is,5V+,DATA,GND,which is mix Data and clk into DATA,so only one data line,the advantage of one data is that it can transfer longer signal,such as first leds to controller can reach 15-20m,if over this,you need to use signal amplifier.

This is come with 144led per meter version of sk6805 smd4818 side light.And we also have 60led/m,90led/m and 120led/m. White and black pcb are available.

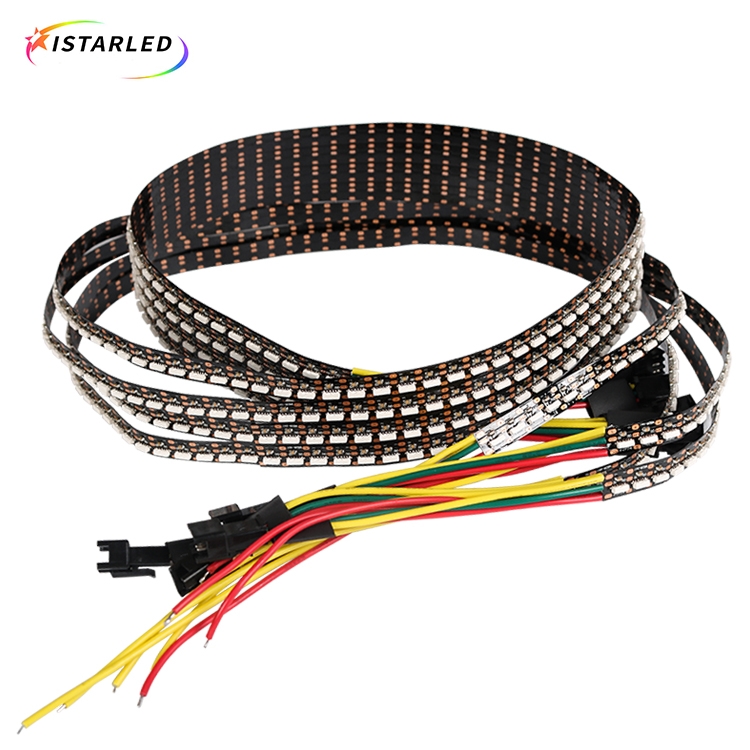

Those side light sk6805 4818 led strip 144led is normal with 1m/roll,each end with 3Pin JST SM female and male connectors.Also each roll have 2 extra wires for power wires.The you can plug them together with the length you need if have enough power.

The sk6805 smd4818 rgbw side emitting rgb pixel led tape is SPI signal,it works with controller such as K-1000c/k-8000c,LM-501,LM-901,DMX,Artnet,Madrix software.
