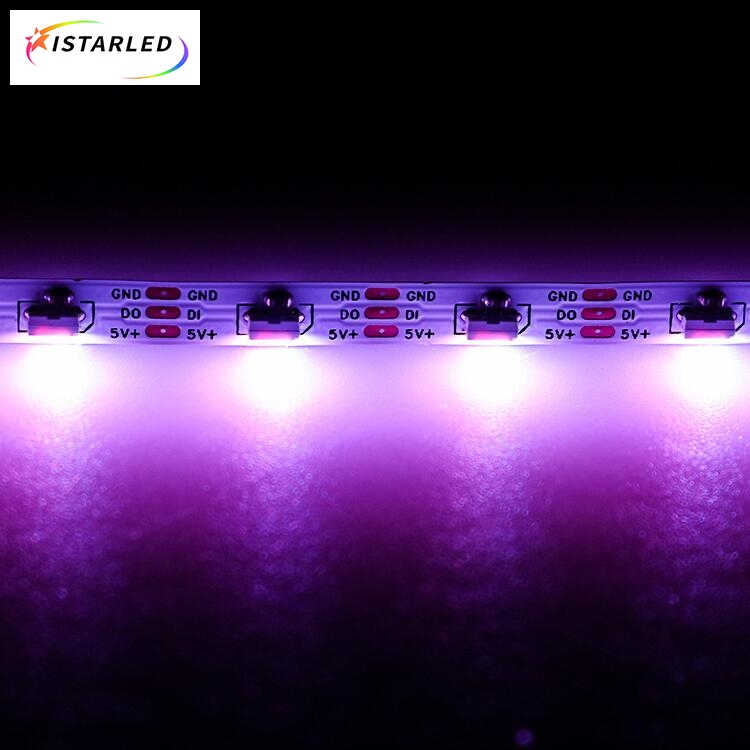

Side emitting 60led SK6812 smd4020 Addressable rgb led strip

Part No:IL-S10060SK6812SIDERGB

Features:

1.dc5v 14.4W/m

2.SK6812 IC Chip built-in SMD4020 RGB

3.60led sk6812/ws2812b 4020 rgb per meter

4.white and black pcb

5.5mm pcb width,pitch distance is 16.67mm

6.normal is 2 oz copper,also can do customer 3oz or 4oz copper pcb

What's more

After 020 and 335 side view leds, what is better than them ? It is sk6812 4020 side emitting LED! Sk6812 4020 side emitting achieve addressable with light emitting at 90 degrees.They're also very skinny so you can run them along a thin edge and curve them around shapes and corners. These look awesome for accent lighting, back lighting, edge lighting...

The sk6812 4020 side view pixel led strip is only 3 solder pads on the PCB,that is,5V+,DATA,GND,which is mix Data and clk into DATA,so only one data line,the advantage of one data is that it can transfer longer signal,such as first leds to controller can reach 15-20m,if over this,you need to use signal amplifier.

This is come with 60led per meter version of sk6812 smd4020 side light.And we also have 90led/m,120led/m and 144led/m. White and black pcb are available.

Those side light sk6812 4020 led strip is normal with 5m/roll,each end with 3Pin JST SM female and male connectors.Also each roll have 2 extra wires for power wires.The you can plug them together with the length you need if have enough power.

The sk6812 4020 side emitting rgb pixel led tape is SPI signal,it works with controller such as K-1000c/k-8000c,LM-501,LM-901,DMX,Artnet,Madrix software.
