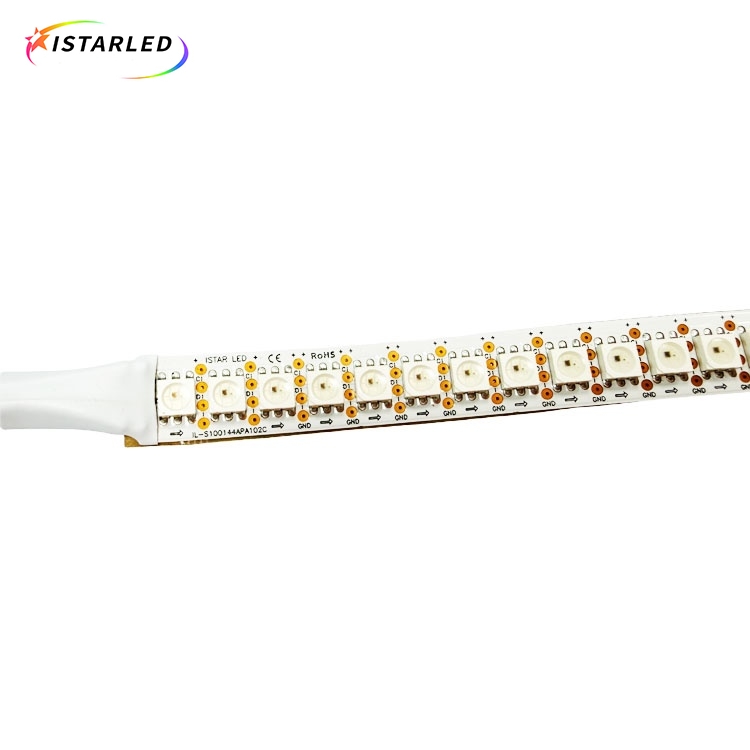

SK9822 APA102C 144LEDs Pixel Addressable Led Tape

Part No:IL-S100144APA102C/SK9822

Features:

1.dc5v 34.56W/m

2.white and black pcb

3.SK9822/APA102C IC Chip built-in SMD5050 RGB

4.10mm pcb width,pitch distance is 6.94 mm

5.Double signal with DATA and CLK seperately

6.IP rate: IP20 with 3M tape,IP65 silicone tube/glue on surface,IP67 silicone tube with glue inside,IP68 for neon strip

7.Work with Arduino,K-1000c/k-8000c,YM-501,DMX512 control,Artnet and Madrix

What's more

1. It is so cool, after ws2812b/sk6812 addressable built in led lamp,now we have DATA and CLK work seperately-that is SK9822/APA102C,which you can use any processor speed or type to control these strips,and you don't worry about being careful with the timing.

2.SK9822/APA102C have higher refresh PWM rates than SK6812 led lamp.You can set the 24-bit color data for each pixel LED once,and then the LED+built-in chip will handle the PWM of the red,green and blue.The SK9822 have a 20 KHz PWM rate, so even when moving the strip around, you won't see the pixelation, the color blending is very smooth.

3.APA102C/SK9822 dotstar addressable 144led pixel led strip is drived by dc5v, 144pcs sk9822/APA102C led lamp per meter,one led can be cut. Also we have white and black pcb for you,you can choose the one you like.

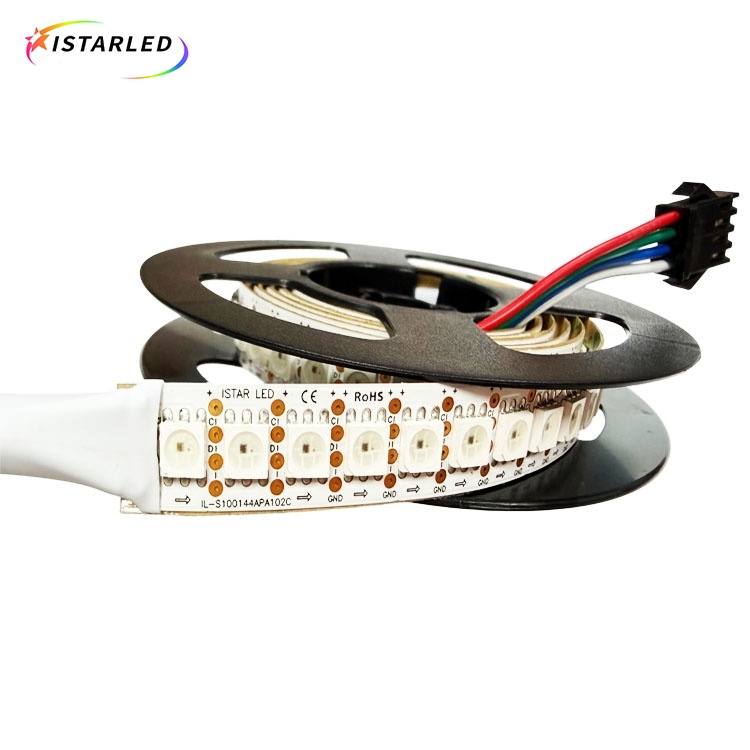

4.APA102c/sk9822 144led pixel strip is normal packing with 5m/reel,each reels with 4Pin JST SM female and male connectors on each side and 2 extra power cable for recharge power.

5.For IP rate we can do IP20 with 3M tape on the backside,IP65 with silicone tube or IP65 with drop glue on the front side surface,IP67 silicone tube with glue inside(full),and IP68 for neon tube.

6.APA102C/SK9822 144led rgb pixel led tape is SPI signal,it works with controller such as K-1000c/k-8000c,LM-501,LM-901,DMX,Artnet,Madrix software.
