DMX512 Square 4leds pixel rgb led module

Applications:

1.Home decoration

2.Advertisement sign lighting

3.Architectural decorative lighting

4.Holidays, events, show exhibitions

5.Background lighting, channel letter lighting

6.Hotels, clubs, shopping malls,swimming pool


info@istar-led.com

Specification

RGB Pixel square digital metal case led module


Part No:IL-M3535DMX

Features:

1.DC12V/24V, 0.96W/pcs

2.4led Epistar SMD5050 RGB

3.DMX512 IC to control 4led

4.20pcs/string or customized,5Pin JST SM female and male connectors

5.Also can do static color with ic chip if you don't want rgb color.

What's more

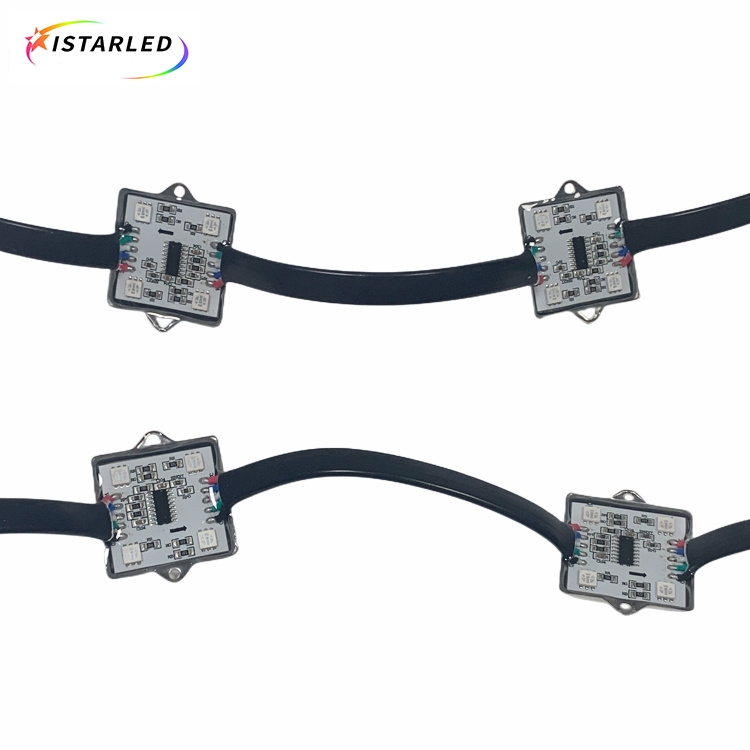

Digital rgb pixels are controlled lights you can program any effects or animate.Each digital pixel with square metal case and contains 4 RGB SMD5050 LEDs and a DMX512 chip soldered to the PCB.The square metal pixel module is glued on the surface to make it waterproof.Those pixel module also have nice mounting options, for examples, each chain with 3M adhesive tape on the backside to help installing,you can put the pixel module into signs, so those pixel modules are typically used to make indoor and outdoor signs.Also each pixel module have 2 small 4mm diameter holes on the middle of module. They also can make large RGB pixel displays and dance stages,KTV floors.

Those pixels use 4 led with smd5050 RGB,with 120 degree beam width,which are connected by a 5 color cable,that is DC12V+,A,B,Pand GND,of course,extra power cable for each chain.They are made by chains,and also for modules are soldering by pixel to pixels so that you can cut them as you need or add more chains together.And it is DMX protocol,and you need use dmx address writor to write dmx address before you program animate.

As for controller, the square pixel modules are DMX signal,you can use sd card controller such as K-1000c,k-8000A,LM501.The advantage for square dmx led module is that one led bad not affect next leds,signal are parallel.
