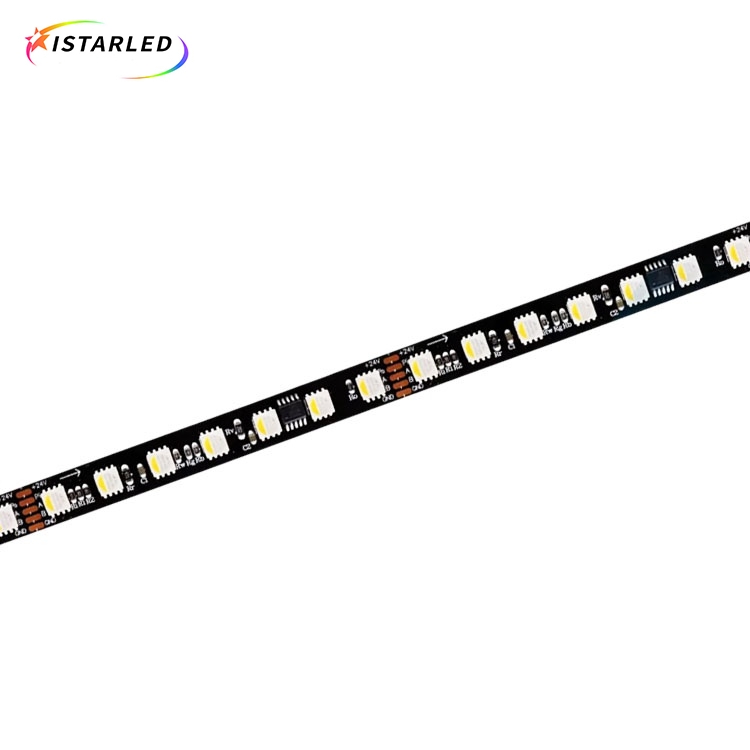

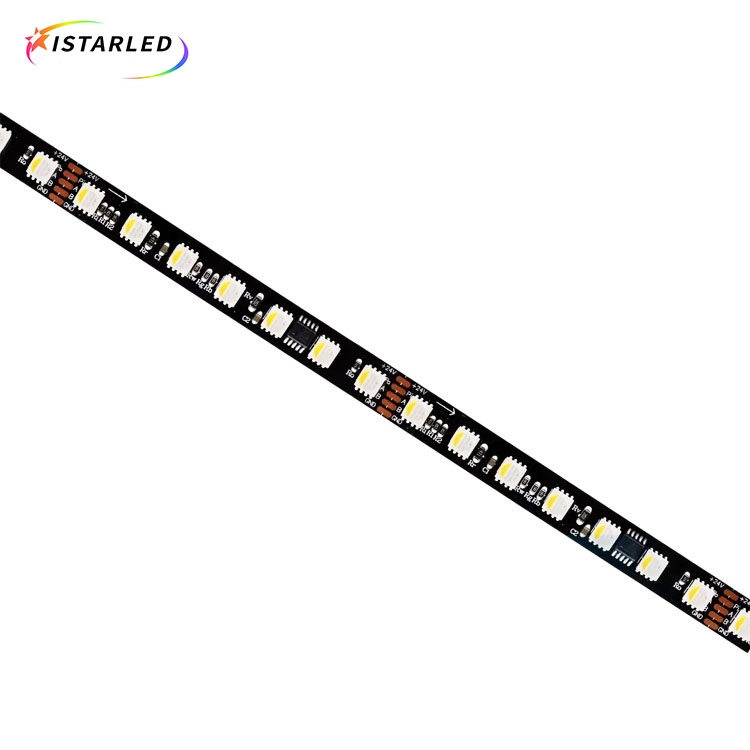

24V DMX RGBW TM512/UCS512 84led 12Pixels Digital LED strip

Part No:IL-S10084DMXRGBWV24

Features:

1.DMX512 standard signal,dc24v,28w/m

2.84pcs SMD5050 RGBW led lamp

3.12pcs UCS512 IC or TM512 IC chip

4.PCB wide:10mm

5.5Pin female and male JST SM connectors on each ends

6.IP rate: IP20/IP65/IP67/IP68

7.White pcb/black pcb

What's more

1.This is digital DMX RGBW pixel led strip，which is different from normal SPI digital led strips,Becuase DMX RGBW led strips have parallel signal.

2.The advantages of DMX RGBW paralle signal led strip are as below:

*Parallel DMX512 signal have no influence of the failure LEDs, as they are in serial connection.

*DMX RGBW have 4 channels R,G,B and W. ,you can use this strip to acheive more white color and more color mixing,which can't show by normal RGB strps

*This DMX512 led strip can achieve 16 bit DMX512 signal,65536 grayscale,so you have more color options.

*DMX RGBW led strip is not only with UCS512C1L IC chip but also TM512AC IC chip

3.DMX RGBW led strip is with 12pixels/m(48 channels),84LEDs RGBW 4 in 1 5050 led lamp based on 10mm width pcb.

4.DMX RGBW pixel led strip is with standard dmx512 signal, which have A,B work seperately, so it is 5Pin solder pads.

5.Dmx rgbw led strip also need dmx address writer to write the dmx address when you need.

6.DMX rgbw led strip work perfectly with Artnet/DMX512 led controllers

7.Addressable dmx rgbw led strip can do non-waterproof with 3M tape, waterproof IP65 silicone tube or drop glue,waterproof IP67 with silicone tube and full glue inside, also can do waterproof IP68 with neon flexible led strips.
