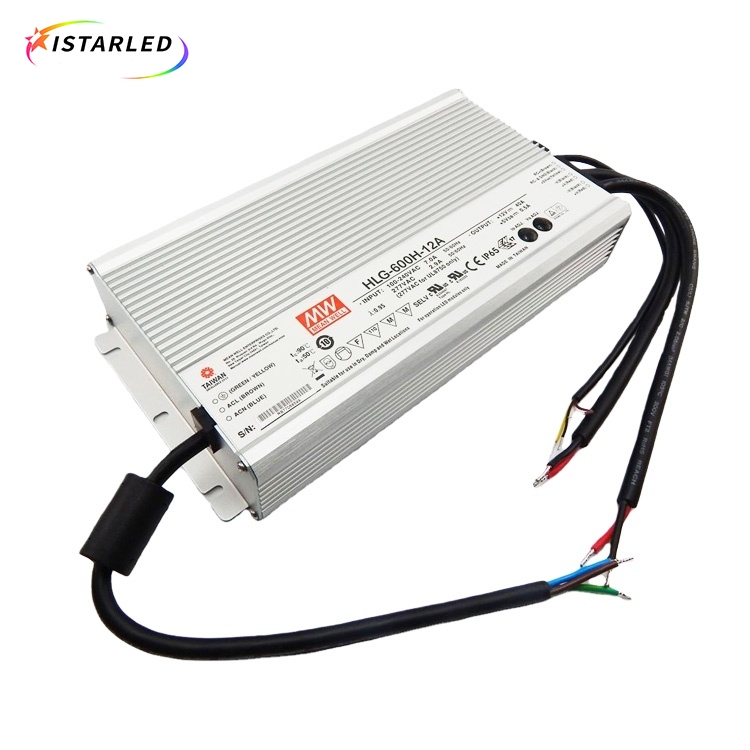

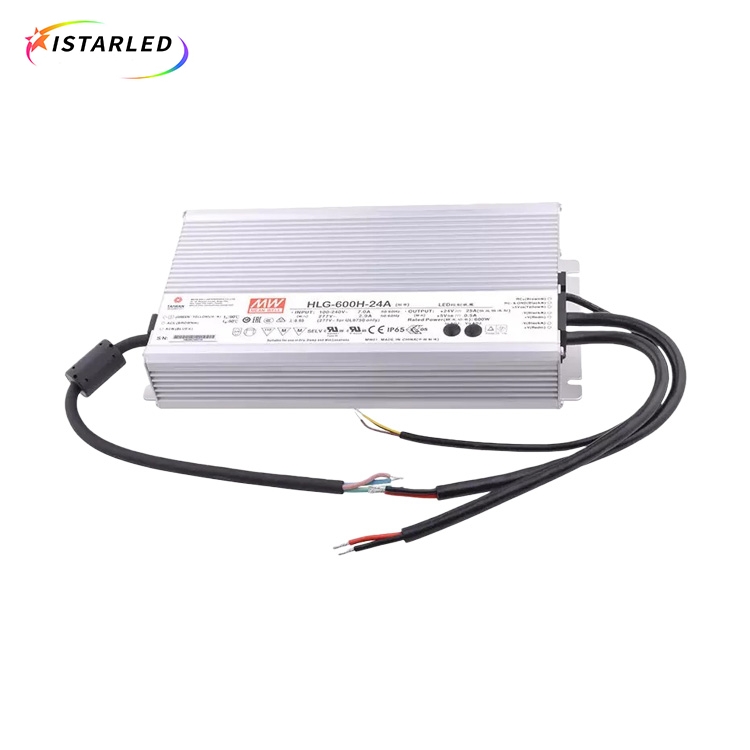

Meanwell Waterproof IP65 HLG-600 Power Supply

• Features　:

  1.90~305VAC input, built-in active PFC function

  2.96% high efficiency (HLG-600H)

  3.Metal case, IP67/IP65 design for indoor or outdoor installations

  3.Function options:
  output adjustable via potentiometer; 3 in 1 dimming (1~10Vdc or 10V PWM signal or resistance); timer dimming

  4.Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries

  5.Suitable for LED street lighting, outdoor LED lighting and general outdoor applications with high IP requirement

  6.IP68/-55℃ startup/10G vibration options available (Please contact MEAN WELL for details)

  7.7 years warranty

  Description:

  HLG-600H series is a 600W AC/DC LED Driver featuring the dual mode costant voltage and costant current output. HLG-600H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 96%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-600H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
