5V Double Side emitting 120led SK6805 smd5720 Addressable rgb led strip

Part No:IL-S100120SK6805SIDE

Features:

1.dc5v 9W/m

2.SK6805 IC Chip built-in SMD5720 RGB

3.120led sk6805 5720 rgb per meter

4.white and black pcb

5.5mm pcb width,pitch distance is 8.3mm

6.3OZ pcb

What's more

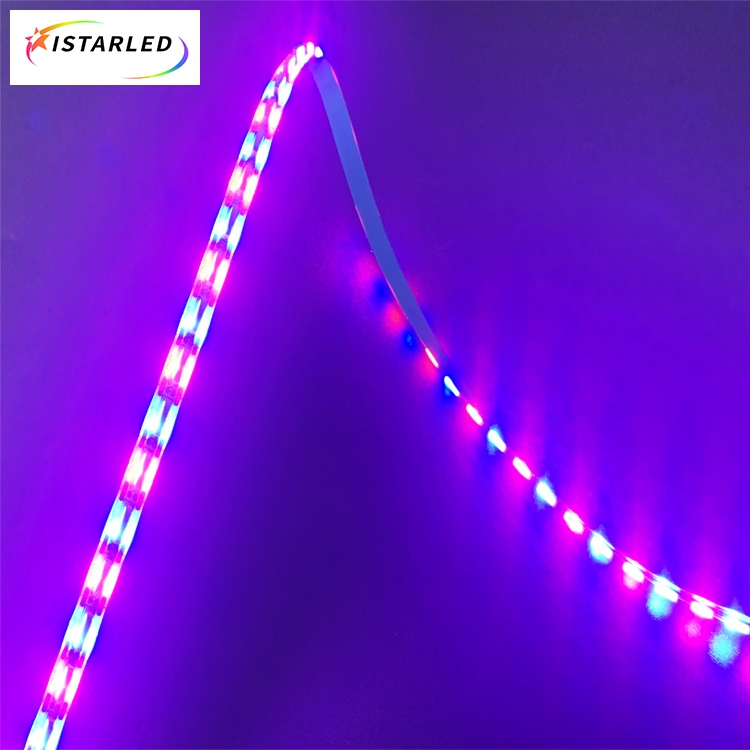

After side emitting addressable rgb led strips, what is better than them ? It is sk6805 double side emitting LED! Sk6805 5720 side emitting achieve addressable with light emitting on both sides.They're also very skinny so you can run them along double edge and curve them around shapes and corners. These look awesome for accent lighting, back lighting, edge lighting...

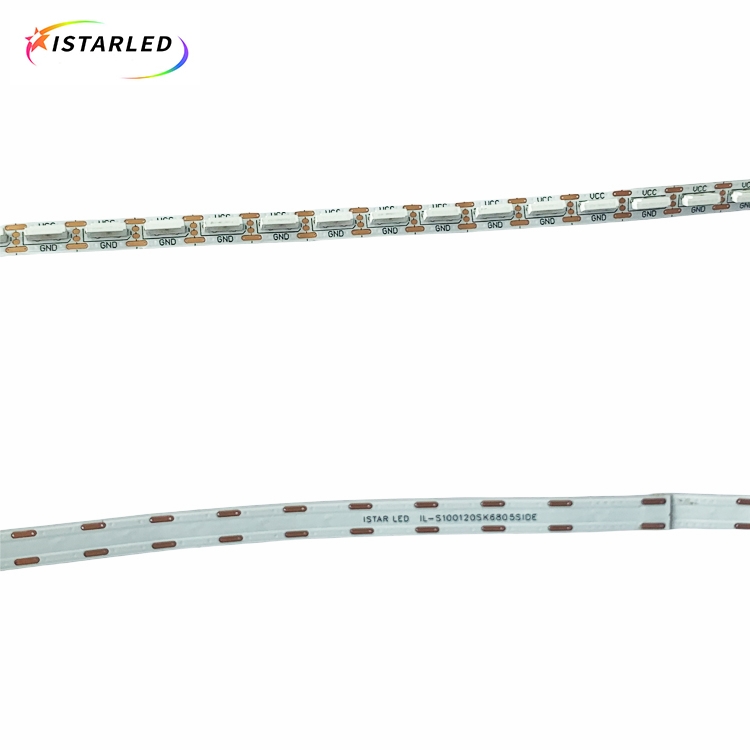

The sk6805 5720 double side view pixel led strip have 4 solder pads on the PCB,that is,5V+,DATA A, DATA B,GND,which is double DATA for each side,you can connect DATA A and DATA B together, so each side light the same color, and you also can connect with 2 channel controller, so make them with 240 pixels, each pixel can program the color you like.

This is come with 120led per meter version of sk6805 smd5720 side light,but you can let them with 120pixel or 240pixels/m.

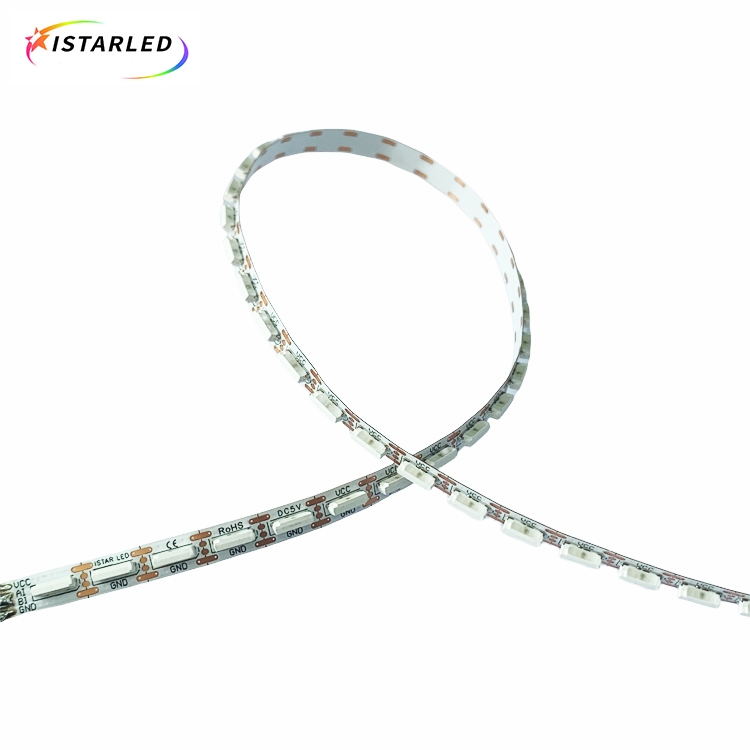

Those double side emitting light sk6805 5720 led strip is only 5mm pcb,we do them with 3 OZ copper pcb. Normal with 5m/roll,each end with 4Pin naked cables.

The sk6805 5720 dual side emitting rgb pixel led tape is SPI signal,it works with controller such as K-1000c/k-8000c,LM-501,LM-901,DMX,Artnet,Madrix software.
