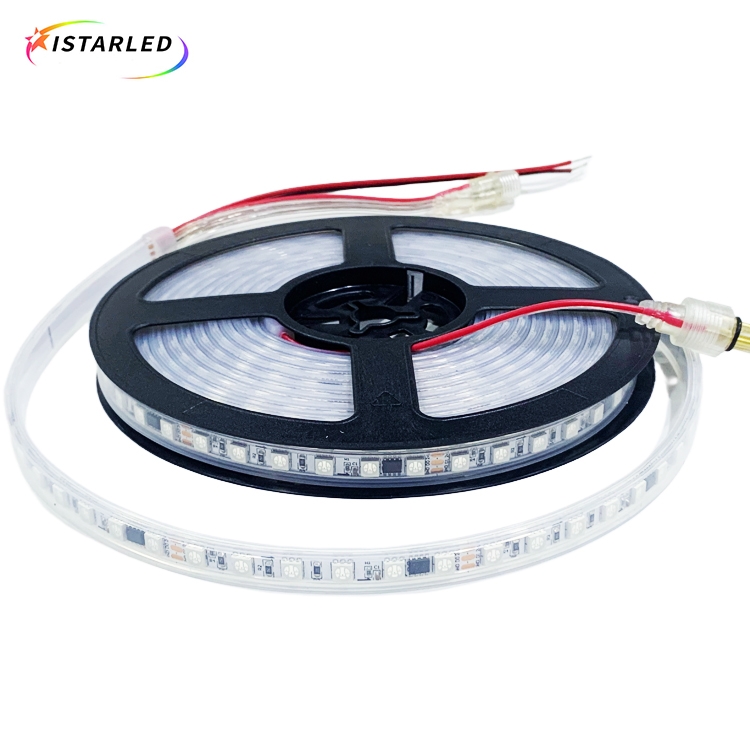

84LEDS SMD5050 24V WS2811 Digital RGB Pixel led strip

PN: IL-S10084WS2811

Features:

1.dc24v 20W/m

2.white and black pcb

3.WS2811/UCS1903/SM16703 IC Chip

4.LED wavelengths: 630nm / 530nm / 475nm

5.14pcs ws2811/ucs1903 ic chip and 84pcs smd5050 rgb led per meter

6.8mm pcb width,pitch distance is 71.4 mm

7.PCB is with 2 ounce copper

What's more

Those digital pixel strip are with 84pcs smd5050 rgb led lamp per meter, drived by 14pcs ws2811/ucs1903 ic chip,that is,6leds with one ic chip.The digital 84LEDS pixel led strip is with dc24v, 20w/m..Those ucs1903/ws2811 digital pixel led strip is with 8mm pcb width,if do silicone tube for waterproof IP65, the width will be 10mm.And we have white and black pcb for you to choose.

And those digital 24v RGB led strip is with flexible pcb,80leds with 14pixels ucs1903/ws2811 ic chip,each meter is with 14pcs solder pad,which means 6led can be cut,every 7.1cm.Normal we do is 5m per roll, and 5m with 3Pin JST SM female and male connectors.Female connectors is input, male connectors is output.Of course, we also can do customer length per roll and connectors,such as molex connectors,waterproof connectors.Each roll is with 2 extra power cable(this strip is dc24v to input power,so please don't use higher than 25V or you can destroy the entire strip).

The 24v ws2811 digital RGB led strip is only 3 solder pads on the PCB,that is,24V+,DATA,GND,which is mix Data and clk into DATA,so only one data line,the advantage of one data is that it can transfer longer signal,such as first leds to controller can reach 15-20m,if over this,you need to use signal amplifier.

The 24v 84led 14pixels ucs1903 led strip is full color led strip, which need controller to make color changing,such as sd card controller k-1000c,k-8000c,T-700k/780k,online controller LM501,TX901,also some DVI/HDMI/RJ45 controller,which are operated by Arduino,Raspberry PI,Artnet/DMX512,Madrix software.
