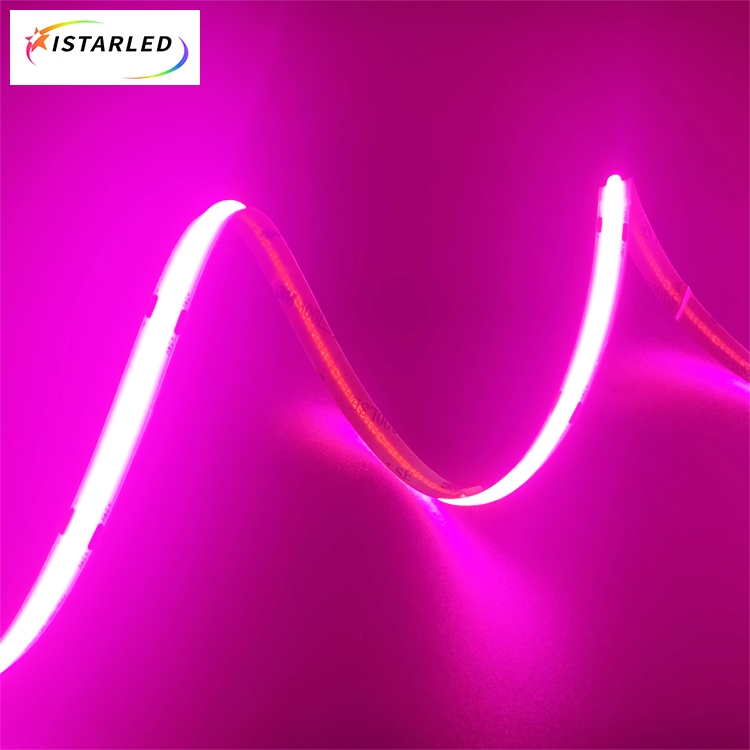

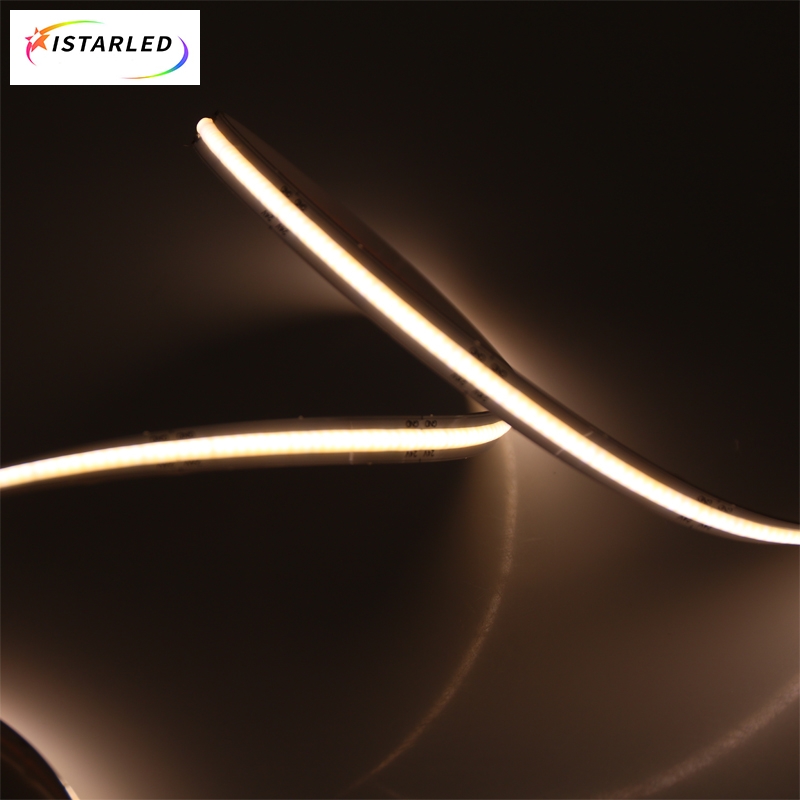

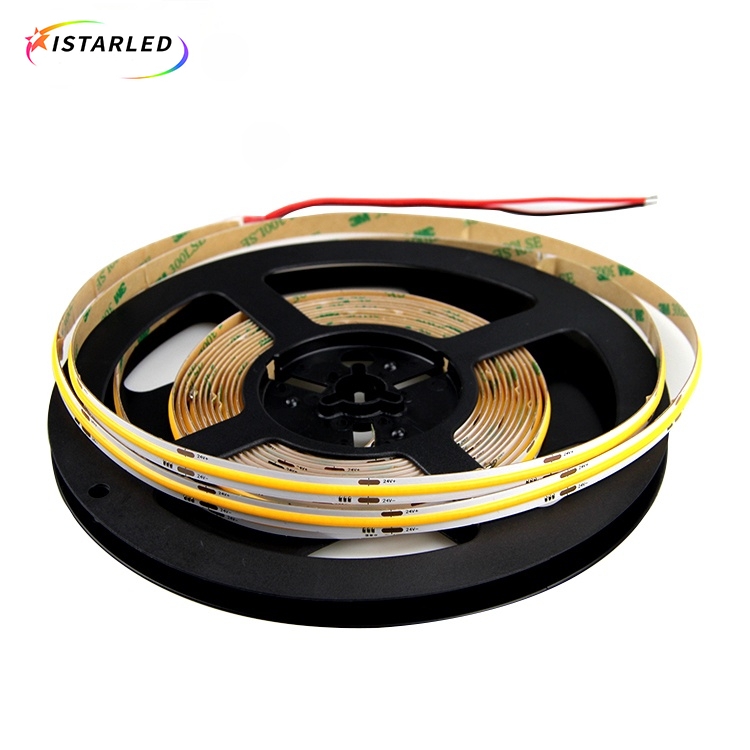

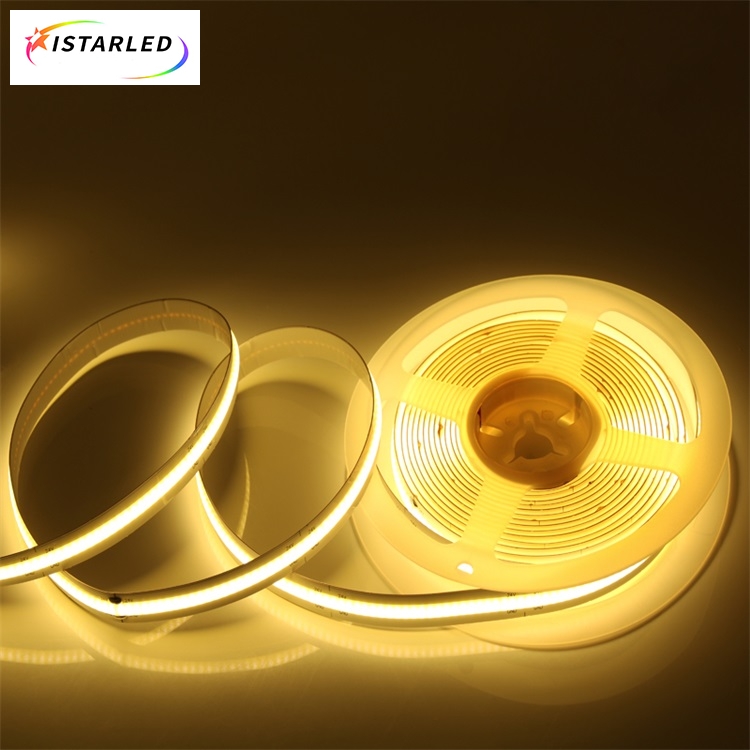

12v 24V COB Single Color 528LEDS/m flexible LED Strip


Applications:


1.Home decorations

2.Advertisement sign lighting

3.Architectural decorative lighting

4.Holidays,events,show exhibitions

5.Background lighting,channel letter lighting

6.Hotels,clubs,shopping malls, swimming pools,Showcase,stage decoration


info@istar-led.com

Specification

12v 24V COB Single Color 528LEDS/m flexible LED Strip


Part No:IL-COB100528

Features:


1.528leds COB single color led strip

2.DC12V /DC24V

3.10W/M,5m/roll

4.Color:warm white/pure white/cold white/red/green/blue color/Pink color

5.PCB size: 8MM/10mm

6.3M adhesive tape on the backside of pcb

7.CRI>85 or CRI>90 (for customerized)


What's more


1.This is the new hot COB led strip,it is 528leds/m,which is single color led strip,not addressable or digital led strip.

2.The difference between COB and normal SMD led strip is that cob is all the chip on the same PCB, smd2835 or 5050 is one chip or 3 chips on the board.

3.The advantages for COB led strip are all led emitting units unprecedentedly close to each other,and create super lighting performance.And also it is with lower power even for 528led/m but with beautiful appearance,soft luminous surface, without spot even use lower height aluminum case.

4.The normal CRI for COB led strip is 85, we also have CRI over 90 for offer.

5.It is 528led/m, also have 320led/m,384leds/m

6.The COB led strip most important advantage is to have uniform illumination with high density leds.

7.When you found defective leds, you can just cut the segment based on the solder pads, then solder them together.
