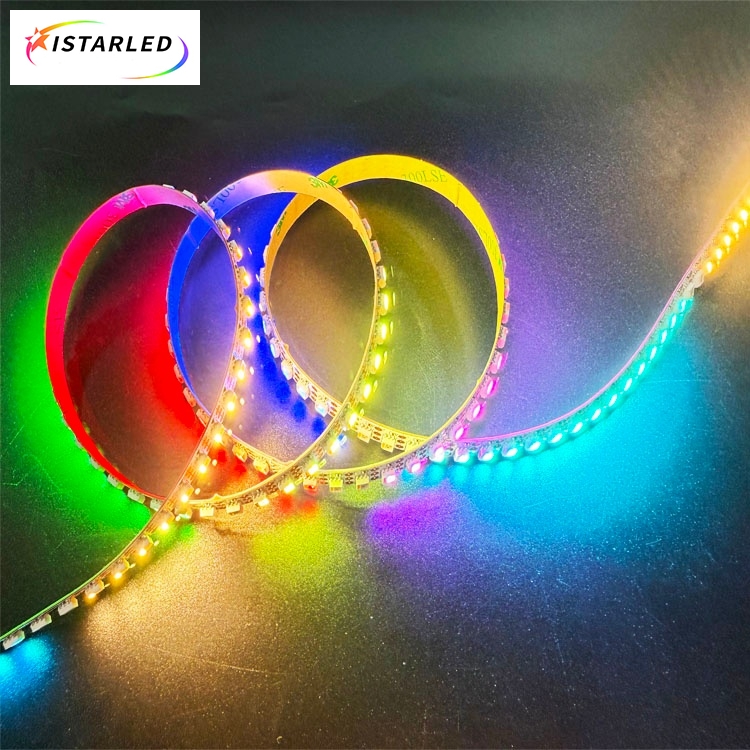

5V Mini skinny 144LEDs SMD3535 RGBW SK6812 Pixel Addressable led strip

Part No:IL-S100144SK6812RGBW35

Features:

1.dc5v 46W/m

2.white and black pcb

3.SK6812 IC Chip built-in SMD3535 RGBW

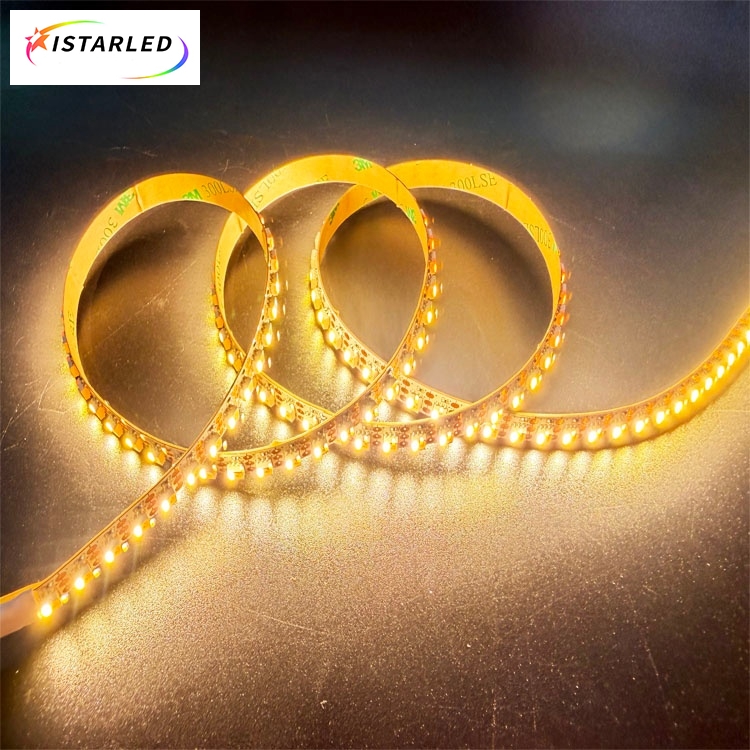

4.RGBW( Warm white 3000K,Neutral white 4500K and cold white 6500k)

5.144led sk6812/ws2812b 3535 rgbw per meter

6.8mm pcb width,pitch distance is 16.67 mm

7.normal is 4 oz copper

What's more

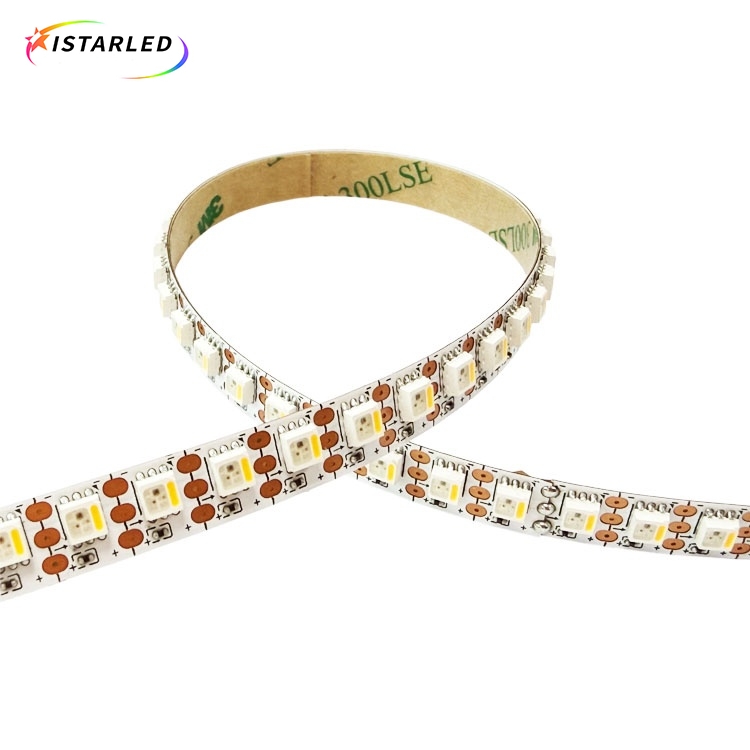

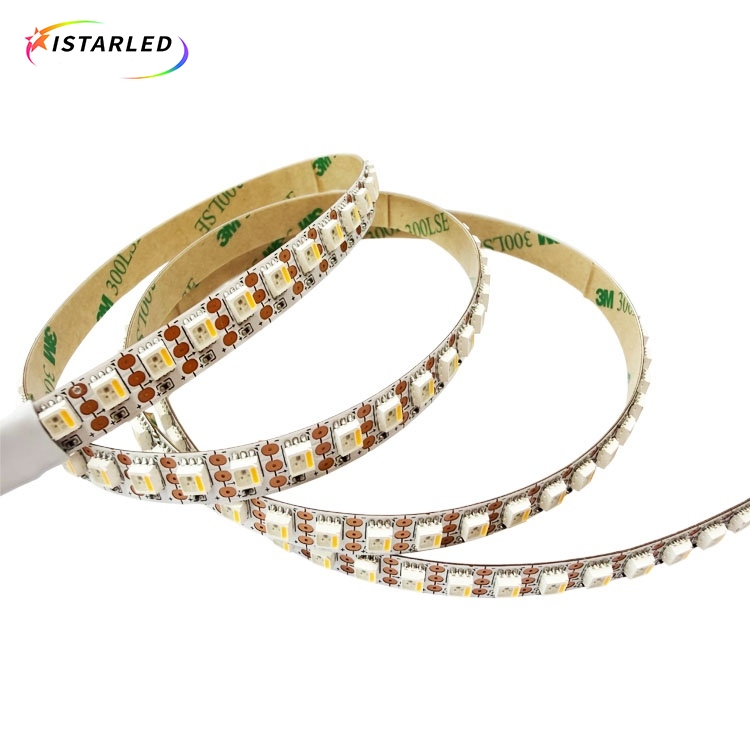

After smd5050 sk6812 rgbw led strip, now we have mini one-that is smd3535 rgbw sk6812 led lamp.Those pixel strip are 144 leds rgbw per meter, each led is with sk6812/ws2812b IC chip built-in SMD3535 RGBW(Warm white/pure white) ,so they are fully addressable.Those addressable pixel led strip is with 8mm pcb width,if do silicone tube for waterproof IP65, the width will be 10mm.And we have white and black pcb for you to choose.Normal we say it is 5v ,each led is 0.3w max,normal is only about 0.32w per led, so 144leds with 46W.

And those strip is flexible pcb with 144 solder pads for each leds, that is, you can cut single led to match for your projects.Normal we do is 1m per roll, and 1m with 3Pin JST SM female and male connectors.Female connectors with input, male connectors with output.Of course, we also can do customer length per roll and connectors,such as molex connectors,waterproof connectors.Each roll is with 2 extra power cable(this strip is dc5v to input power,so please don't use higher than 6V or you can destroy the entire strip.

Those pixel addressable led strip is only 3 solder pads on the PCB,that is,5V+,DATA,GND,which is mix Data and clk into DATA,so only one data line,the advantage of one data is that it can transfer longer signal,such as first leds to controller can reach 15-20m,if over this,you need to use signal amplifier.

5V sk6812 rgbw mini 3535 addressable led strip can use sd card controller such as K-1000c,K-8000C,also can use multi-function dmx to spi controller, such as YM-501,also can work with dmx control by Madrix,Artnet
